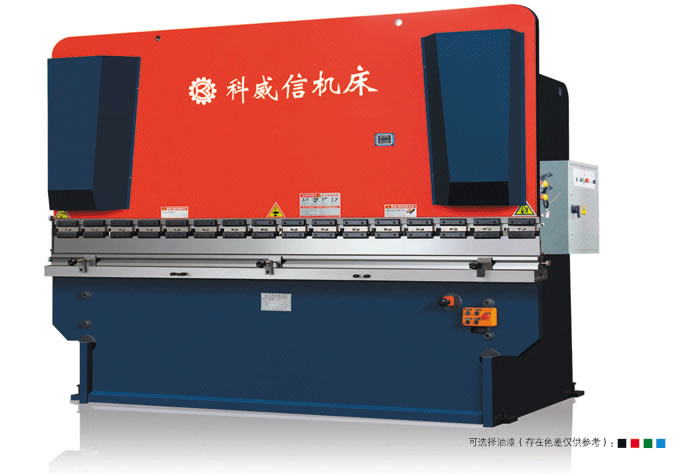

WC67Y series torque synchronous hydraulic sheet bending machine

Performance characteristics:

The machine adopts double cylinder control module to move up and down

The machine adopts mechanical torque synchronization

The stopper and rear stopper are equipped with digital display

Equipped with domestic brand hydraulic integrated system

Equipped with Siemens low-voltage apparatus

Equipped with Japanese Wall Card oil cylinder seals

equipped with diagonal deflection compensation; Large tonnage can be equipped with hydraulic lower table compensation

Digital display system of models such as Estun E10 is optional

Technical parameters:

Specification and model	Nominal pressure (kN)	Workbench length (mm)	Distance between columns (mm)	Throat depth (mm)	Slide stroke (mm)	Main motor power (kw)
WC67Y/K 40/2200	400	2200	1750	200	100	4
WC67Y/K 40/250035	400	2500	2000	200	100	4
WC67Y/K 63/2500	630	2500	2000	240	120	5.5
WC67Y/K 80/3200	800	3200	2500	240	120	5.5
WC67Y/K 80/4000	800	4000	3000	240	120	5.5
WC67Y/K 100/2500	1000	2500	2000	320	150	7.5
WC67Y/K 100/3200	1000	3200	2500	320	150	7.5
WC67Y/K 100/4000	1000	4000	3000	320	150	7.5
WC67Y/K 100/5000	1000	5000	4000	320	150	7.5
WC67Y/K 125/2500	1250	2500	2000	320	150	7.5
WC67Y/K 125/3200	1250	3200	2500	320	150	7.5
WC67Y/K 125/4000	1250	4000	3000	320	150	7.5
WC67Y/K 125/5000	1250	5000	4000	320	150	7.5
WC67Y/K 160/3200	1600	3200	2500	320	180	11
WC67Y/K 160/4000	1600	4000	3000	320	180	11
WC67Y/K 160/5000	1600	5000	4000	320	180	15
WC67Y/K 160/6000	1600	6000	4800	320	180	15
WC67Y/K 200/3000	2000	3200	2500	320	200	15
WC67Y/K 200/4000	2000	4000	3000	320	200	15
WC67Y/K 200/6000	2000	6000	4800	320	200	15
WC67Y/K 250/3200	2500	3200	2500	400	250	18.5
WC67Y/K 250/4000	2000	4000	3000	400	250	18.5
WC67Y/K 250/3200	2500	3200	2500	400	250	18.5
WC67Y/K 250/4000	2500	4000	3000	400	400	18.5
WC67Y/K 250/5000	2500	5000	4000	400	250	18.5
WC67Y/K 250-6000	2500	6000	4800	400	250	18.5
WC67Y/K 300/3200	3000	4000	3000	400	250	22
WC67Y/K 300/4000	3000	4000	3000	400	250	22
WC67Y/K 300/5000	3000	5000	4000	400	250	22
WC67Y/K 300/6000	3000	5000	4000	400	250	22
WC67Y/K 400/4000	4000	4000	3000	400	250	22
WC67Y/K 400/5000	4000	5000	4000	400	320	22
WC67Y/K 400/6000	4000	6000	4800	400	320	22
WC67Y/K 500/6000	5000	6000	4800	400	320	22
WC67Y/K 600/7000	6000	7000	5600	400	320	45
WC67Y/K 700/7000	7000	7000	5600	400	320	45
WC67Y/K 800/6000	8000	8000	4800	500	400	55
WC67Y/K 10000/6000	10000	6000	4800	600	500	75

Due to the continuous improvement of the product, the parameters are subject to change without notice!
